ProDig Silage Compactor

Share:

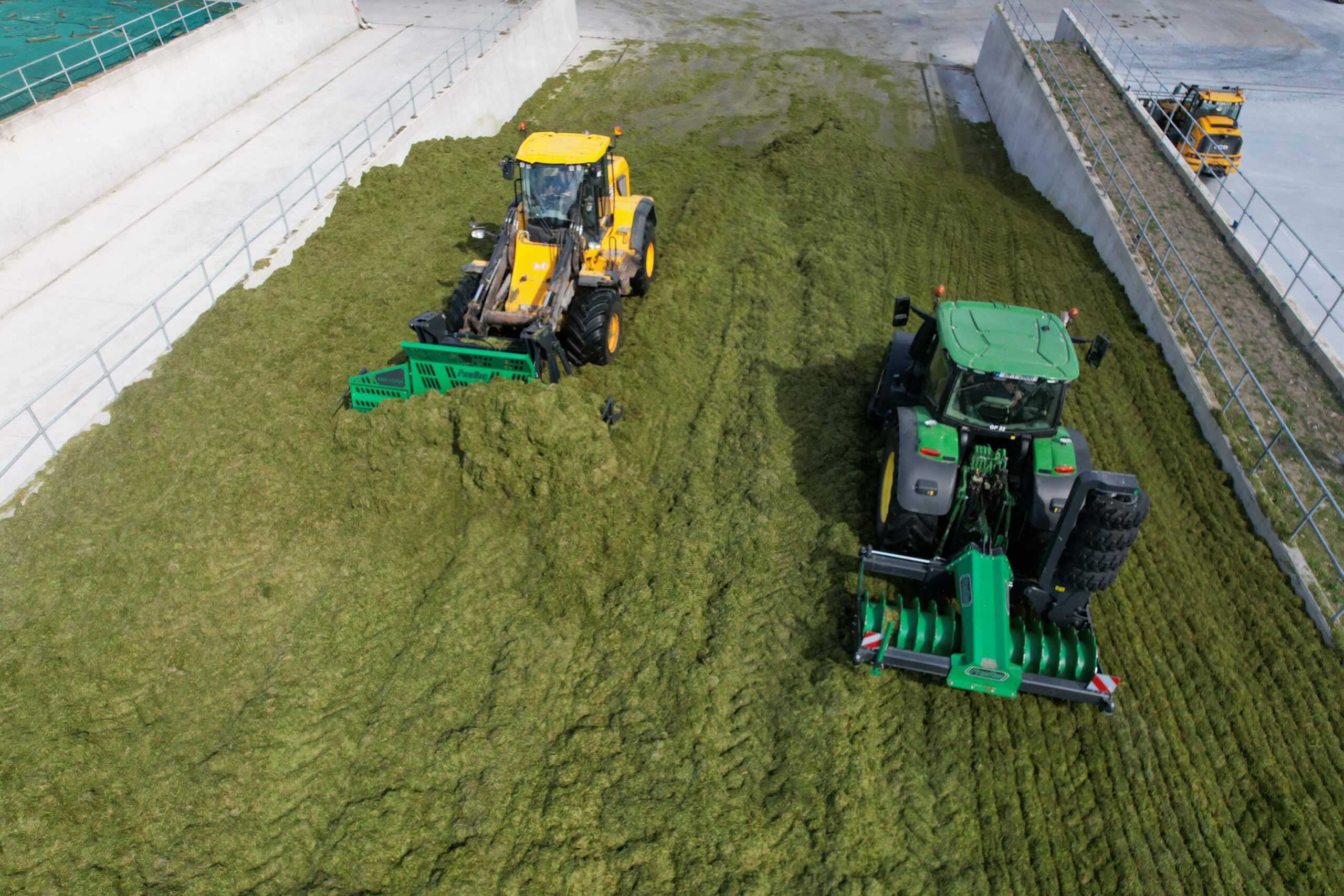

The Prodig Silage Compactor is designed to increase compaction rates while keeping up with today’s fast paced contracting environment, with trailers and forks increasing in size the volume and speed of material being put into the pit is increasing year on year. Suitable for large horsepower tractors.

  • Available in sizes 2.5m and0m in width.
  • Increase weight of machine by 2.5 to 5.0t tonne respectfully depending on model/ additional options.
  • Rigid fixed or adjustable sliding versions

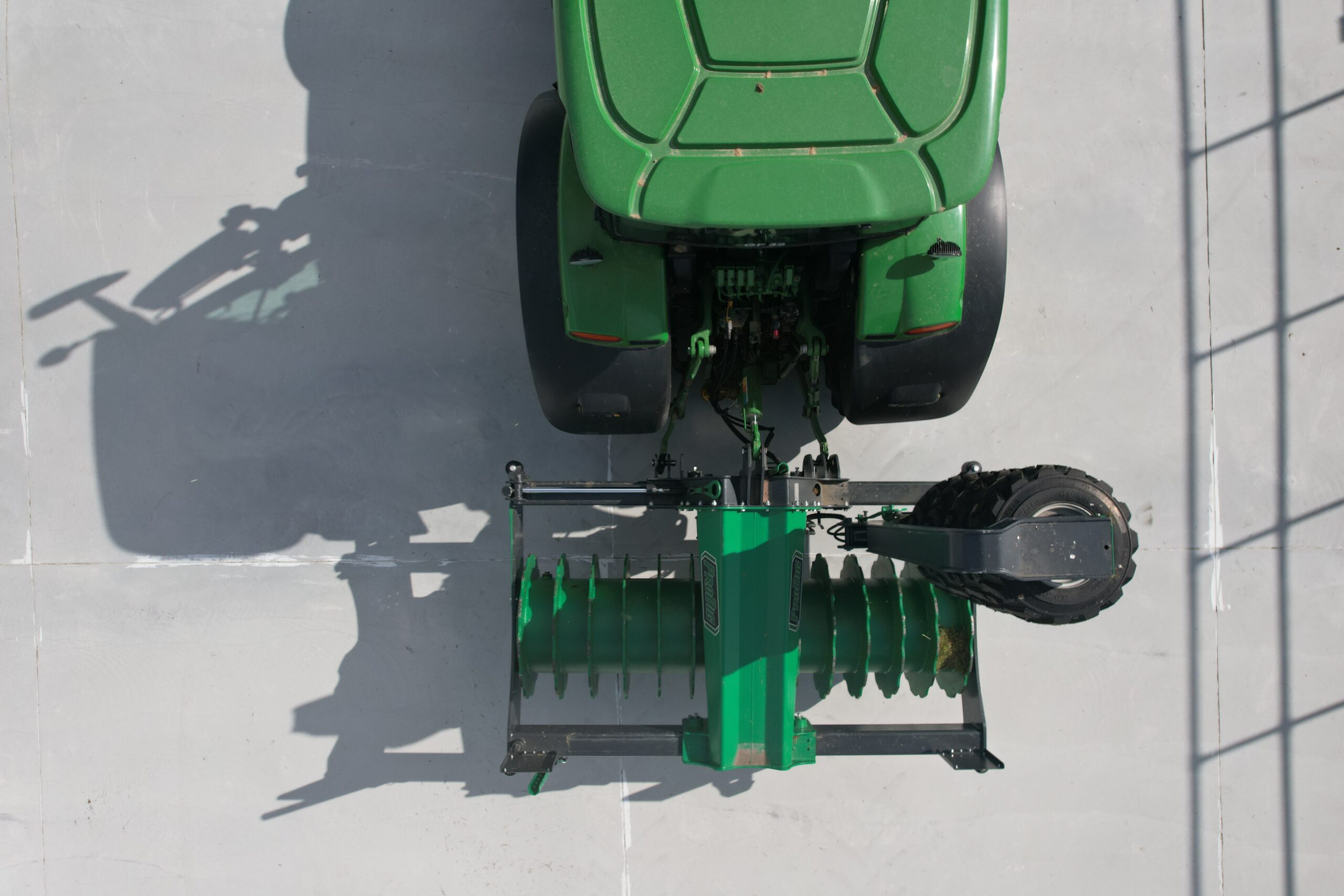

  • Hydraulically adjustable side shift, 700mm on 3.0m model & 500mm on 2.5m model.
  • Water ballast weight in drum & box sections.
  • Adjustable slide bearing material for grease free operation.
  • 60mm drum flange bearings.
  • Rear reflective side markers as standard.
  • Front and rear stand for storage when not in use.

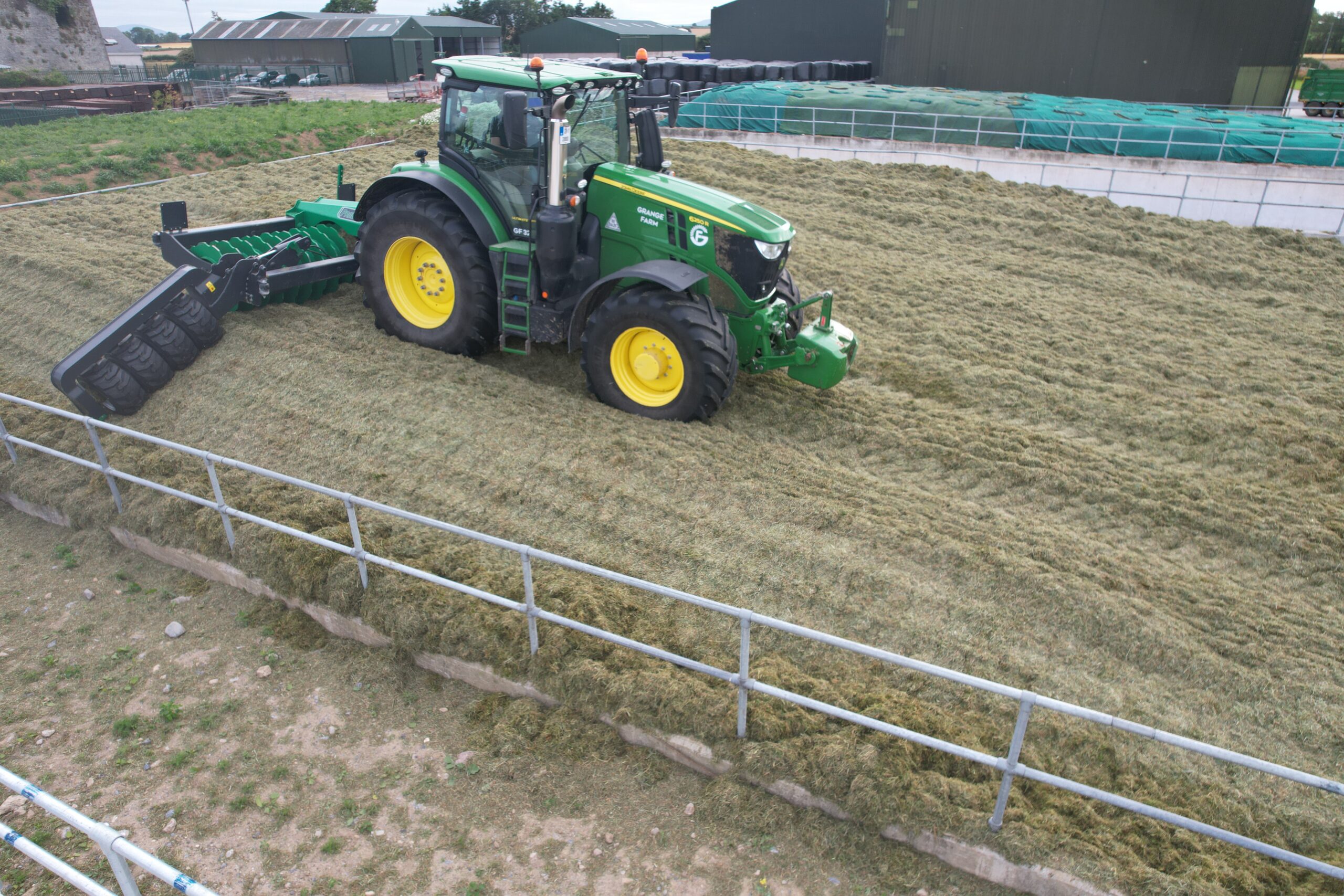

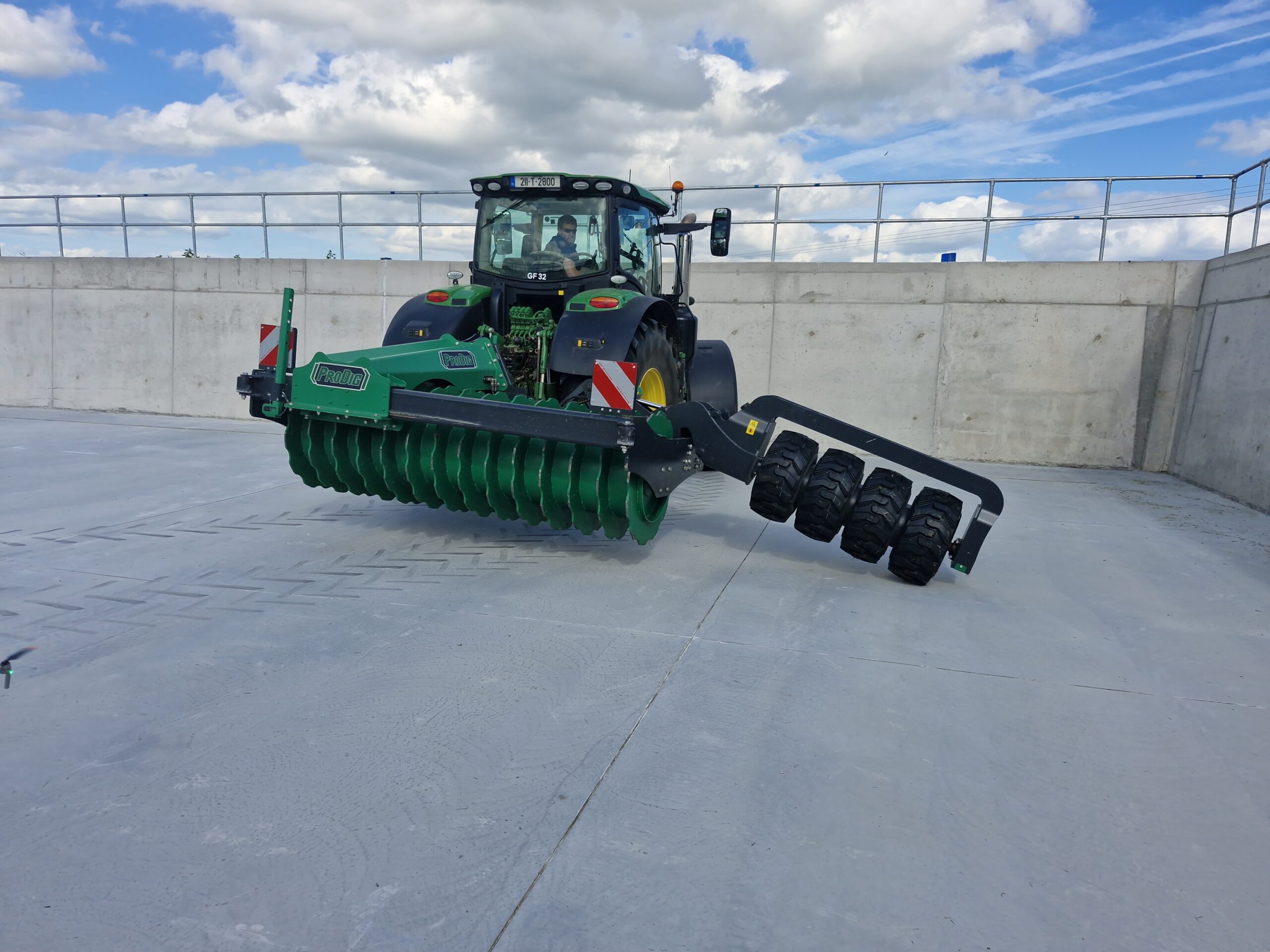

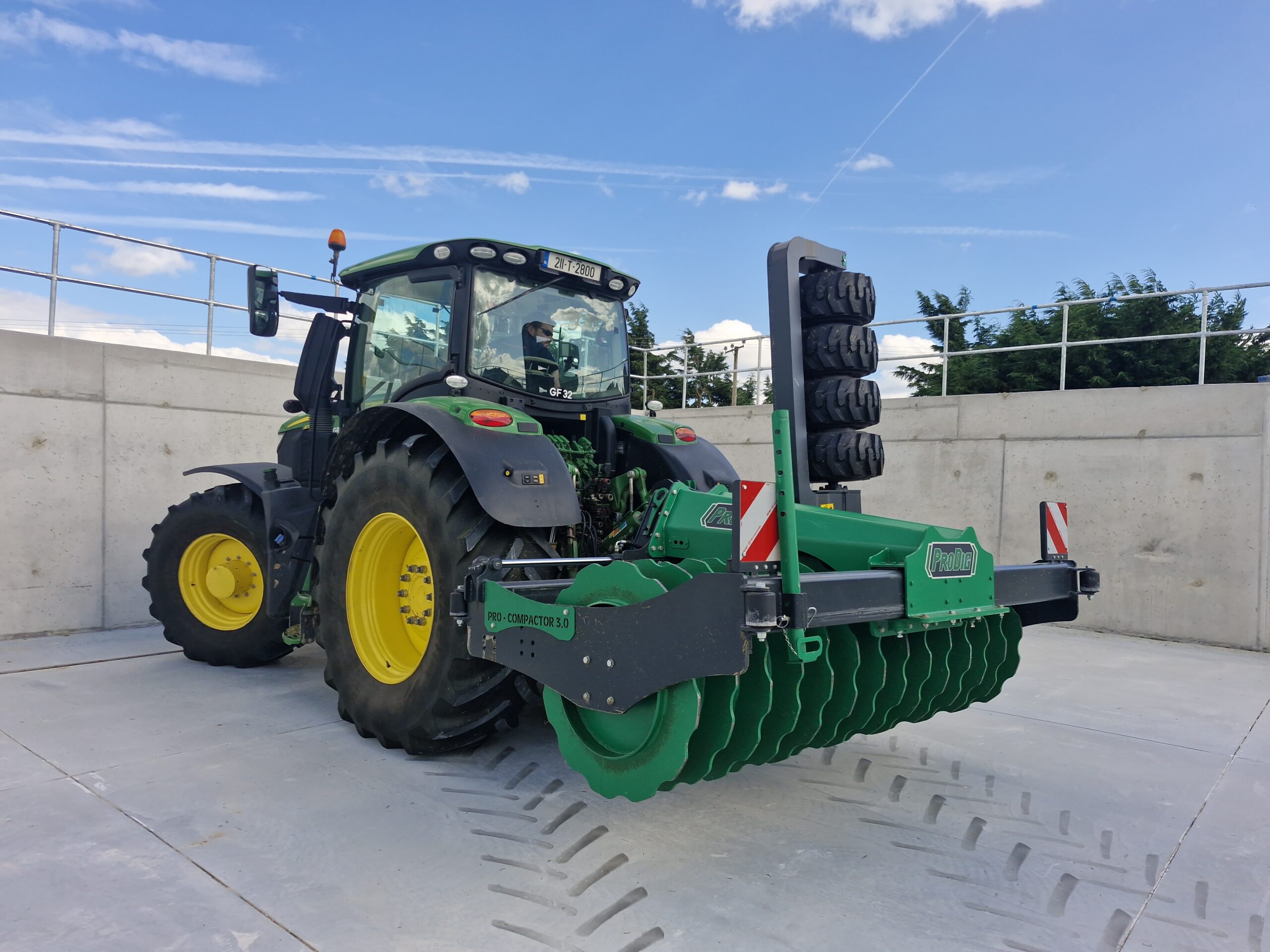

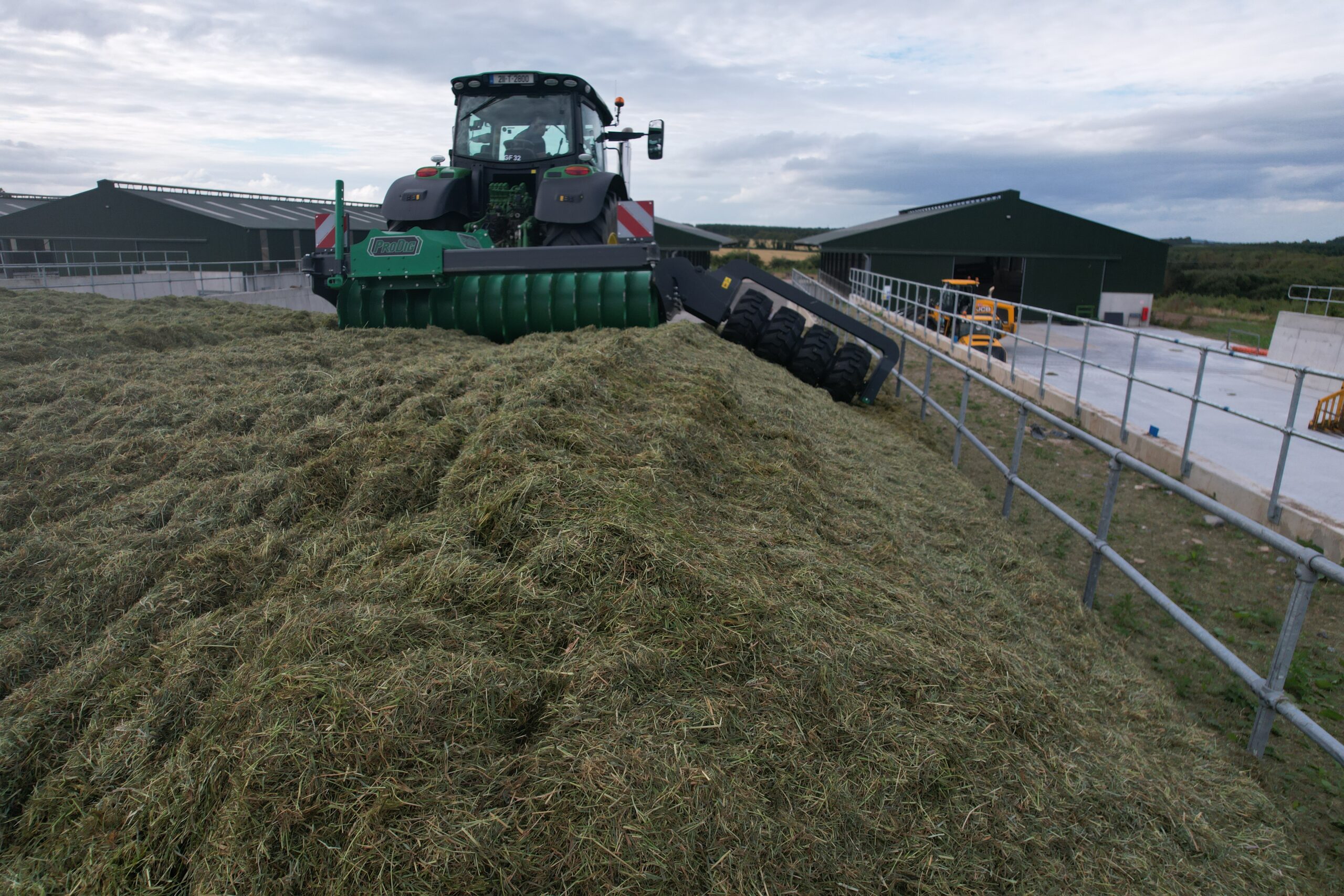

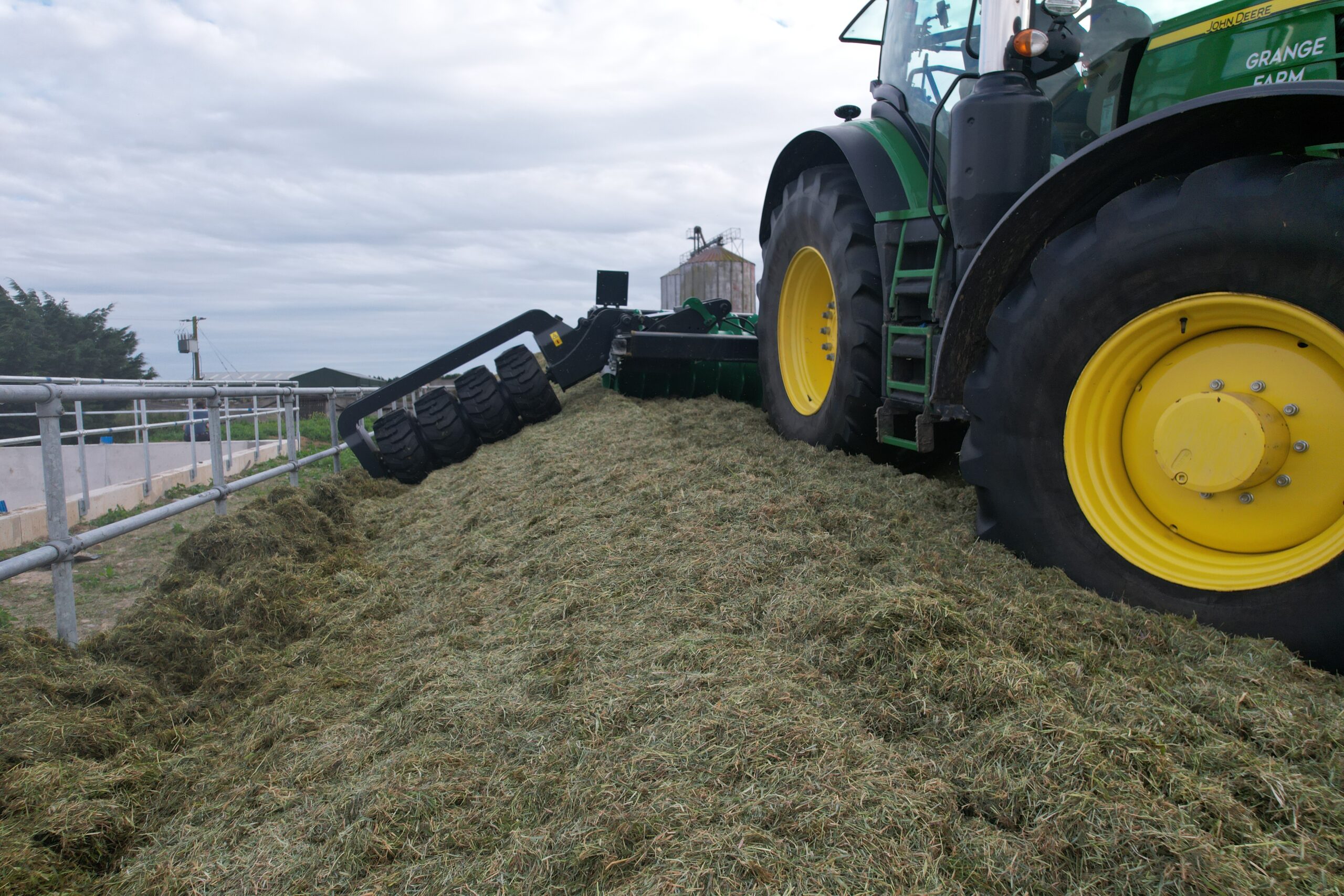

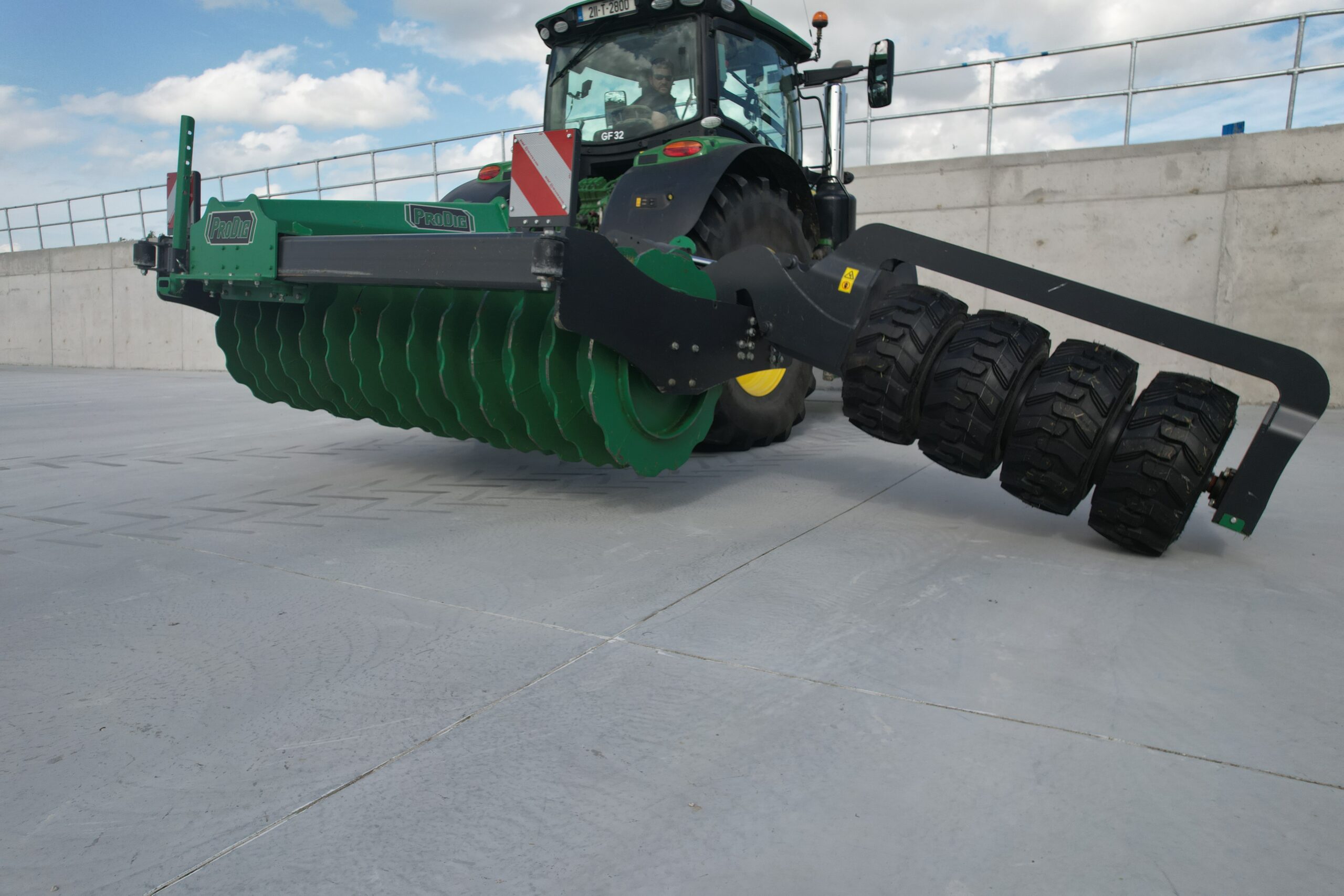

  • Optional – bolt on universal Hydraulic operated edge compactor arm can be bolted to either side for safe rolling of pit wall without pit walls.
  • Optional – bolt on top concrete weight.
  • Cat 3 & 4 attachment brackets.

Product Description

Technical DataSC-3000-VSC-2500-VSC-3000-FXSC-2500-FX
Width (mm)A2995250029952500
Height (mm)B1390139013901390
Arm Height (mm)C29452945
Side Shift (mm)Offset – 700Offset – 500FixedFixed
Empty Weight2190198518401650
Additional Capacity Water (Kg)860700860700
Inc Balast Water (KG)3050268527002350
Inc Side Arm (520Kg)35703205
Optional Weight Block 1650kg
Optional Weight Block 21000kg
Optional Weight Block 31500kg
Roller Diameter (mm)940mm
Number of discs14121412
Number of cylinders x Diameter (mm)1 x 60mm Bore1 x 60mm Bore
Number of cylinders x Diameter (mm)1 x 70mm Bore1 x 70mm Bore
**Required oil pressure (BAR)200

All measurements approx. (±5mm, ±5kg),
**This information serves as guidance only.

Silage Compactor Sliding (2.5m)SC-2500
Silage Compactor Sliding (3.0m)SC-3000
Silage Compactor Bolt On ArmSC-ARM
Optional Weight Block 1SC-WB1
Optional Weight Block 2SC-WB2
Optional Weight Block 3SC-WB3
